XLSX-Specific Export Options

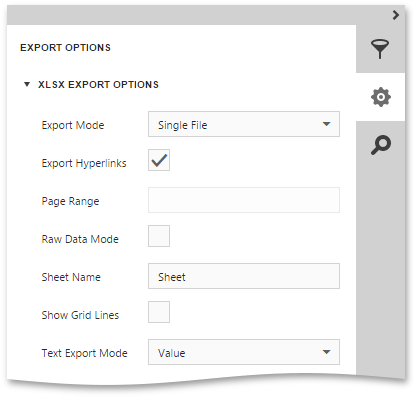

Before exporting a document to XLSX format, you can specify XLSX-specific options in the dedicated Export Options panel.

EUD_HTML5DV_XlsxExportOptions

  • Export Mode

    Specifies how a document is exported to XLSX. The following modes are available.

    • The Single File mode allows exporting a document to a single file, without dividing it into pages.
    • The Single File PageByPage mode allows exporting a document to a single file, while preserving the page-by-page breakdown. In this mode, the Page Range option is available.

  • Export Hyperlinks

    Specifies whether to include hyperlinks into the resulting file.

  • Page Range

    Specifies a range of pages which will be included in the resulting file. To separate page numbers, use commas. To set page ranges, use hyphens.

  • Raw Data Mode

    Specifies whether to enable the raw data export mode. In this mode, only a document's actual data is exported to XLSX, ignoring non-relevant elements, such as images, graphic content, font and appearance settings.

  • Sheet Name

    Specifies the name of the sheet in the created XLSX file.

  • Show Grid Lines

    Specifies whether grid lines should be visible in the resulting XLSX file.

  • Text Export Mode

    Specifies whether value formatting should be converted to the native XLSX format string (if it is possible), or embedded into cell values as plain text.
