Data Binding Modes

The Report Designer uses one of the following modes to provide dynamic content to your reports: expression bindings or standard data bindings.

Expression Bindings

Expression bindings enable you to use complex expressions that include two or more fields and various functions. Expressions also allow you to calculate complex summaries without scripts and conditionally shape your data without formatting rules.

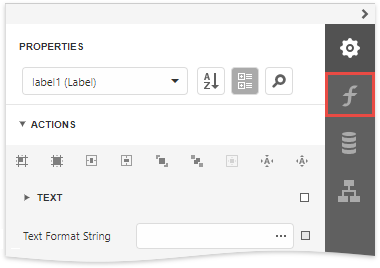

This mode is enabled in the Report Designer if it provides the Expressions panel.

Data Bindings

Standard data bindings enable you to assign a single data field to a report control or use report scripts to provide custom logic.

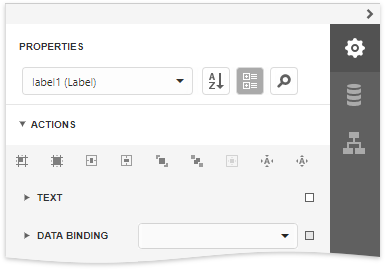

This mode is enabled in the Report Designer if it does not provide the Expressions panel.

Conversion Dialog

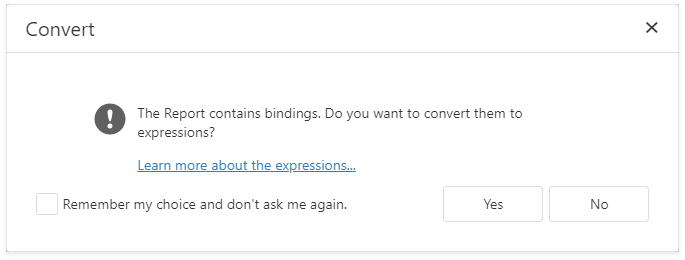

The following dialog appears only when expression bindings are enabled in the Report Designer, and you open an existing report that uses standard data bindings:

This dialog prompts you to convert your report to use expressions (the new binding mechanism). Click Yes to run the report conversion, click No to open the report without changes.

See the section below for information on how to use expressions instead of data bindings.

Binding Mode Comparison

Bind to a Single Data Field

• The Field List panel allows you to drop fields onto the design surface or existing report controls. All binding ways are identical in the data bindings and expression bindings modes.



• You can select a report control and bind it to data in the Properties panel.

  Expression Bindings	Data Bindings

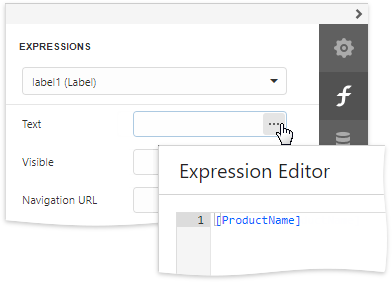

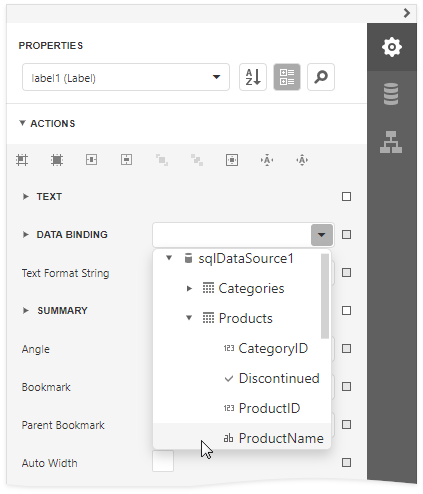

  Switch to the Expressions panel, click the Text property's ellipsis button and specify the expression.	Expand the Data Bindings drop-down list and select a data field.

See the following topics for more information:

• Bind Report Controls to Data (Expression Bindings)
• Bind Report Controls to Data (Data Bindings)

Bind to Multiple Data Fields

Expression Bindings	Data Bindings
Use the mail merge functionality. Switch to the Expressions panel, click the Text property's ellipsis button and specify the expression.	Use the mail merge functionality.

Calculate Summary

Expression Bindings	Data Bindings

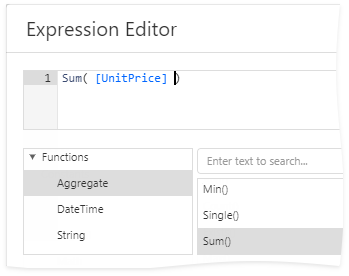

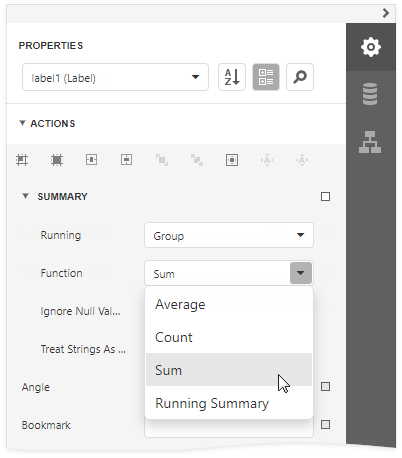

Select the summary function in the Expression Editor's Summary section. See Calculate a Summary for more information.	Expand the Summary node in the Actions category and select the summary function in the Function drop-down list. See Calculate a Summary for more information.

Complex Bindings, Custom Summary

Expression Bindings	Data Bindings

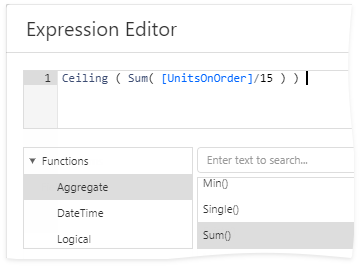

Use the Expression Editor to construct an expression of any complexity. Refer to Calculate an Advanced Summary for an example.	Use report scripts. Refer to Calculate a Custom Summary for an example.

Conditionally Customize Appearance

Expression Bindings	Data Bindings

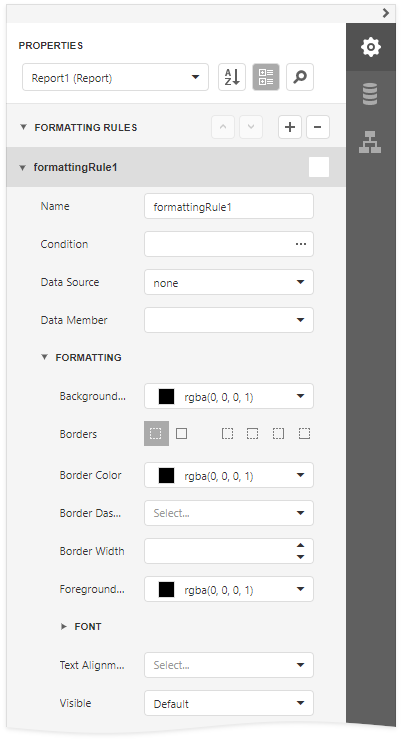

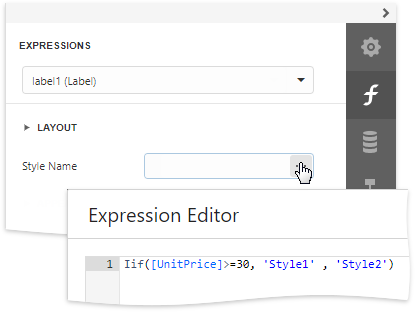

Switch to the Expressions panel, click the Style Name property's ellipsis button and specify the expression. Refer to Conditionally Change a Control Appearance for an example.	Create formatting rules and assign them to report controls. Refer to Conditionally Change a Control Appearance for an example.
